Rhino Hatch Patterns
Rhino specialty hatches include these hatches:
- Concrete
- Reinforced Concrete
- Earth
- Herringbone
- Granite
- Sand
Download the Hatch File
Rhino can import hatches that are written in the CAD standard PAT format.
- Download this open source, free to use Rhino hatch file
- Or you can import your CAD .PAT if you have one.
- You can also download 3rd party hatches here.
How Import the Rhino Hatch
- Open your file in Rhino 6, 7, or 8.

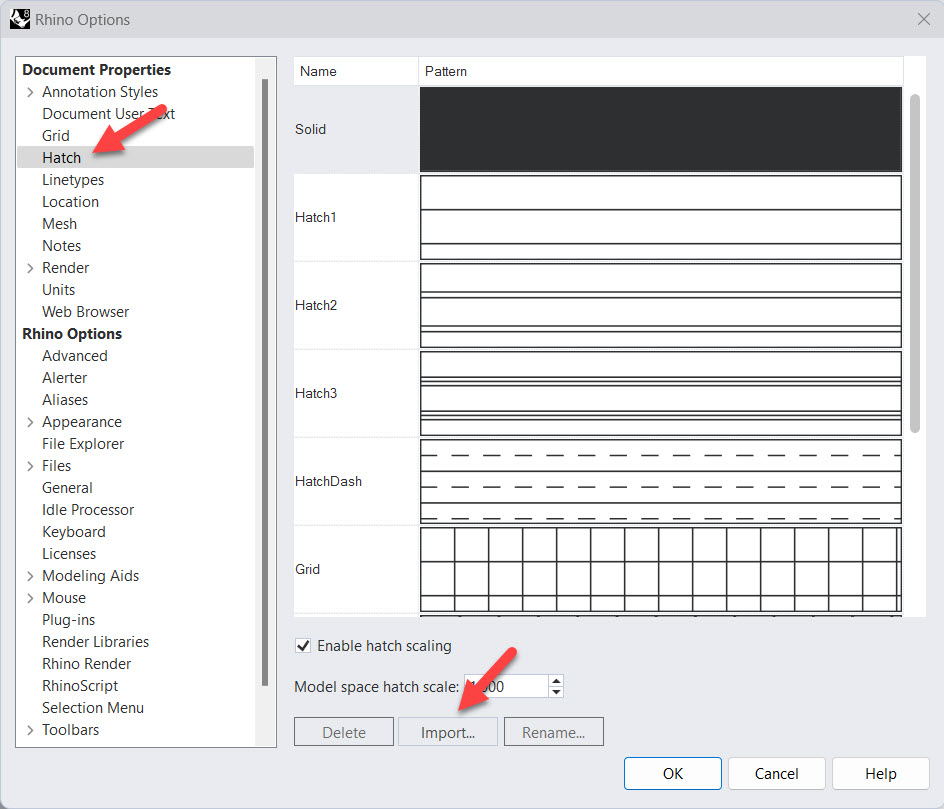

- On Windows, type the Options command or on Mac go to File and click Settings.
- Click the Hatch page.
- At the bottom of the Hatch page, pick the Import button.

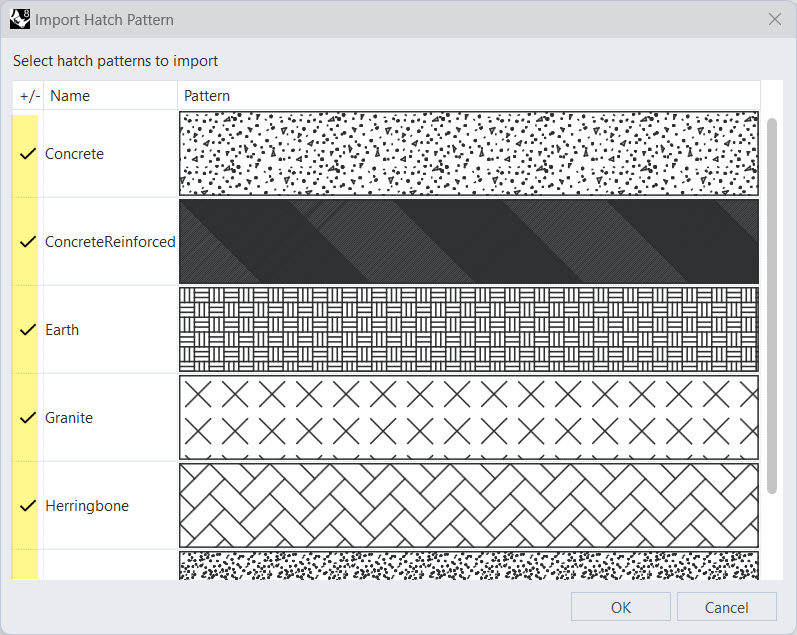

- Pick the Hatches to import from the dialog.
- Pick OK
How Test the Rhino Hatch

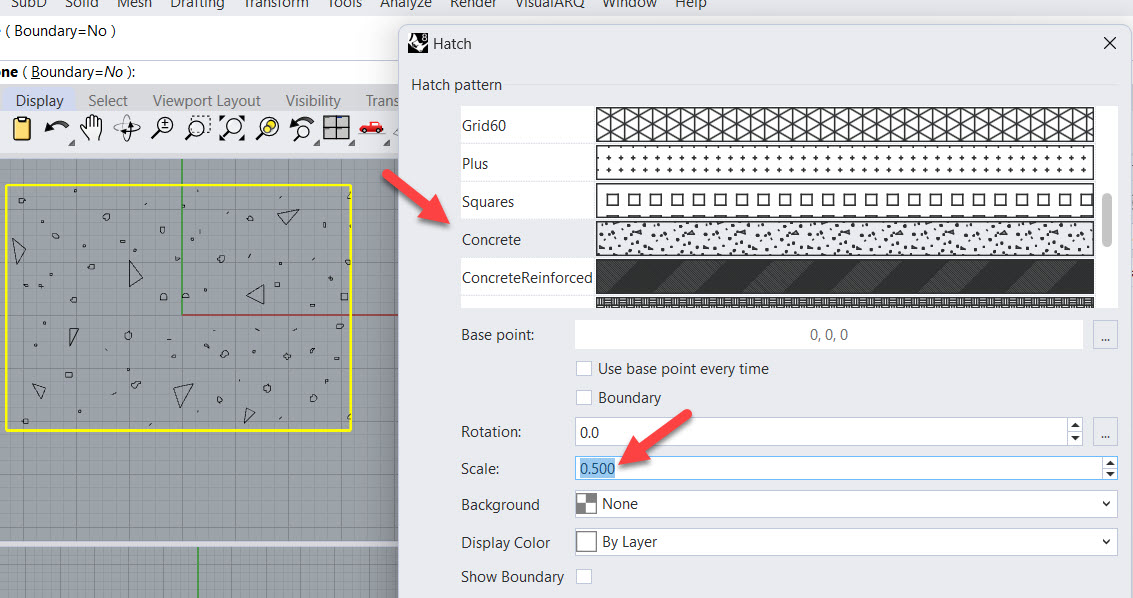

- Type the Hatch command.
- Pick the curve and Enter.
- Pick the Hatch and set the appropriate scale in the dialog.
- Pick OK
Using in a Rhino 8 Section Style
In Rhino 8 the section style is typically a assigned to the layer.
When using the by layer section style, objects that are on the layer and clipped by a clipping section or clipping plane, will be displayed in this style.
Layer Panel: Section Style
After adding a clipping section or clipping plane to the model, go to the layer panel. The Section Style is available under its own column.
See legacy Rhino hatch patterns options: https://wiki.mcneel.com/rhino/draftingpage https://wiki.mcneel.com/rhino/hatchpatterns
