by Rajaa Issa, Clipping Section (formerly SectionTools plugin) For Rhino 8 or later.

In this comprehensive video tutorial, learn about Rhino clipping and sectioning workflows using section styles, selective clipping, setting clipped views and extract dynamic vector drawings.

Before you start:

1. Download the model set here... Unzip into a folder and be ready to open the files.
2. Open the handout PDF here...
3. Start the video tutorial (~2 hours) here... or view by section (15 short videos) here...

Sections

• 01 Introduction (01:25)
• 02 Clipping Plane Properties (13:04)
• 03 Clipping Plane Widget (03:45)
• 04 Clipping Sections (08:11)
• 05 Save Clipping Views (10:08)
• 06 Why Use Clipping Planes (02:10)
• 07 Selective Clipping (05:01)
• 08 Clipping Plane Shape (01:42)
• 09 Custom Hatch Patterns (03:52)
• 10 Section Styles (08:03)
• 11 Section Styles By Clipping Plane (06:49)
• 12 Sectioning Workflows Using Clipped Views (13:03)
• 13 Sectioning Workflows Using Clipping Drawings (16:53)
• 14 Extract Nested Sections for Laser Cutting (15:44)
• 15 Slicing Sections Q&A (15:06)

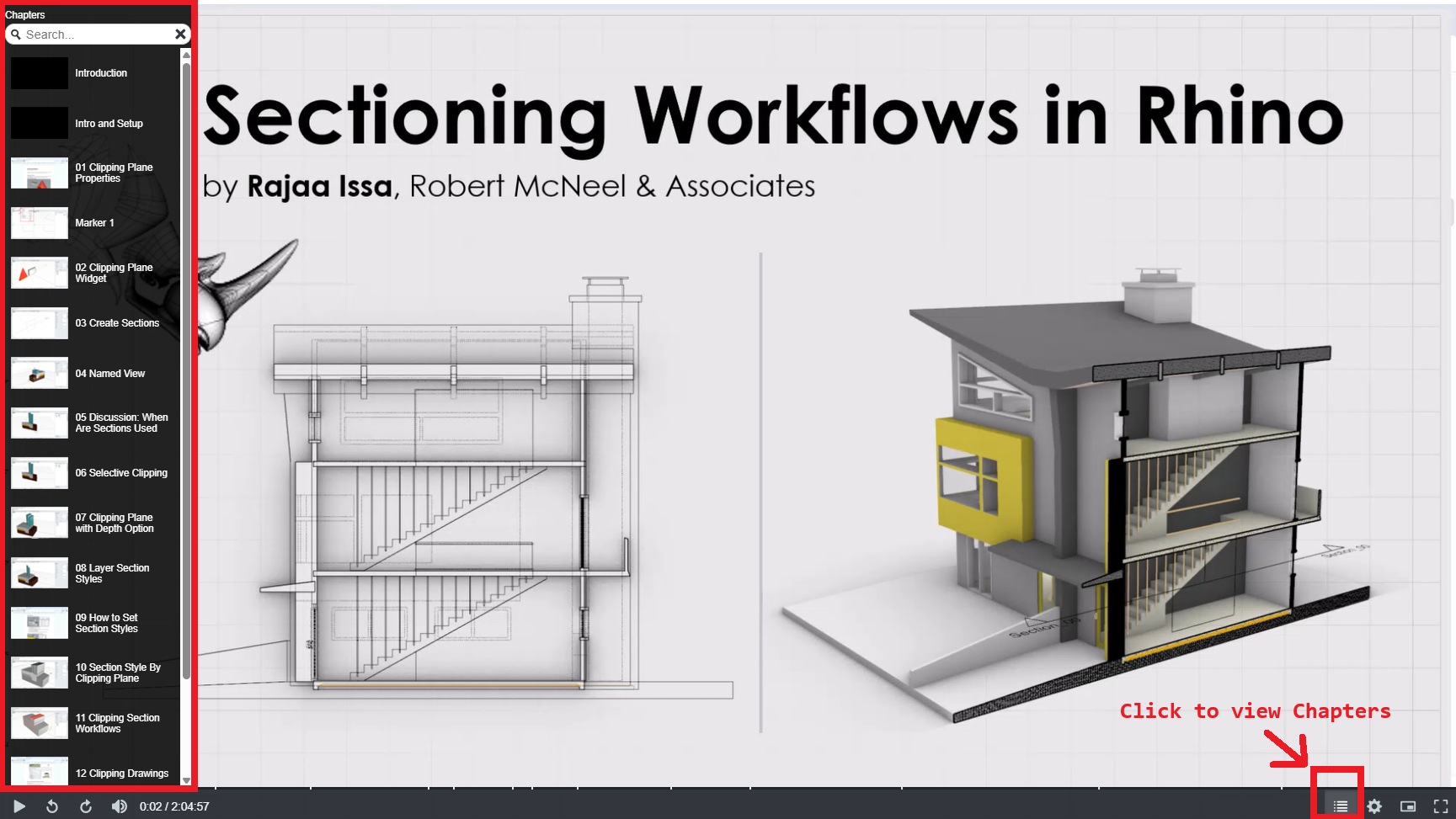

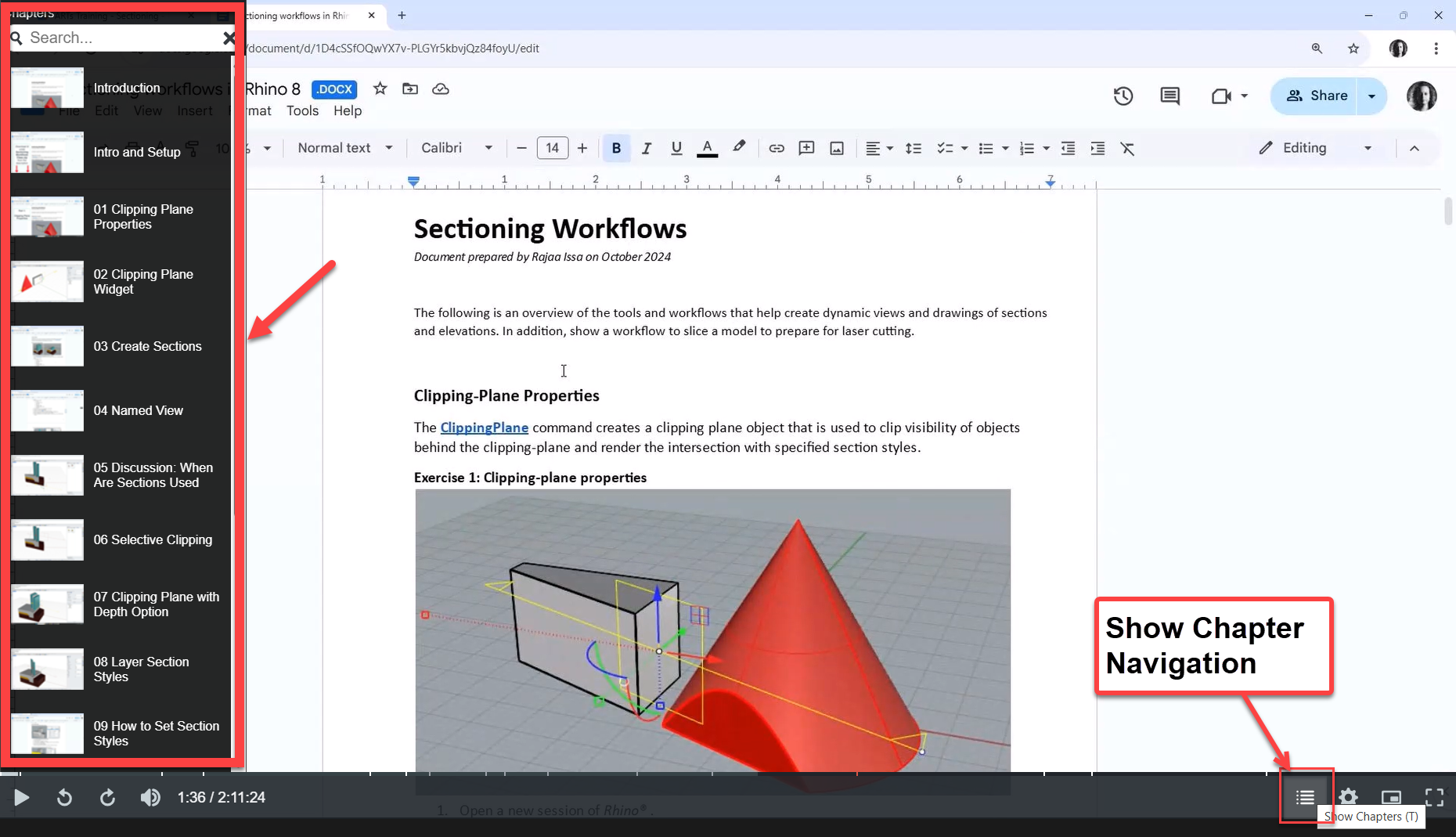

Note: To access the sections in the 2-hour video tutorial, click the navigation button pictured below.

Email: Rajaa Issa or Rhino Technical Support
