PanelingTools Tutorials
Summary: Video tutorials for PanelingTools Plug-in for Rhino.
Tutorials
Introduction to PanelingTools for Rhino

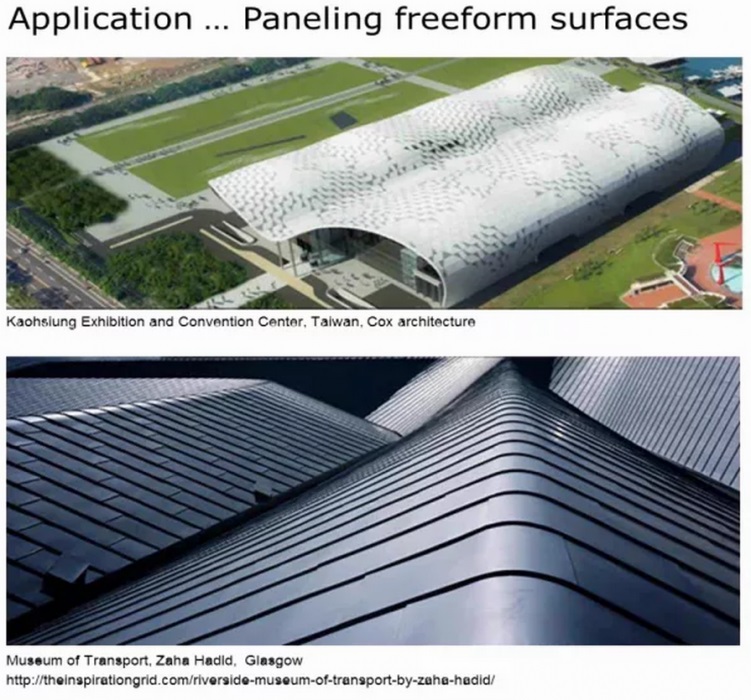

This is the full presentation given by Rajaa Issa, the developer of PanelingTools plugin for Rhino, during the D-O-F (Design+Optimization+Fabrication) workshop at the University of Florida on February 11, 2011.
The presentation is broken into 3 parts. The first shows surface rationalization and unrolling. The second explores cladding and the third shows a weaving example. You can also download example files used in the Presentation (3DM Files, 24MB).
Four tutorials from Rhino tech tips by Brian James.
 | Three tutorials from Generative Design Computing blog by Gless Wilcox. View details |
 | A tutorial from the Adaptive Component Systems at Cornell University. View details |
 | Series of short tutorials from Rhino3D TV. View details |
 | Mac tutorial to populate patterns. View details |
Short Clips
Download All Clips(7.12MB)
The following short clips intended for a quick review. They highlight some of the PanelingTools functionality.
For full description of commands and their options, please download PanelingTools Manual.
Check the PanelingGallery to share and read about users stories.
 | Interacting with Grasshopper. View details |
 | RhinoScript support in PanelingTools. Download Clip (364KB) |
 | Generate paneling grid using surface UV directions. Download Clip (346KB) |
 | Generate the paneling grid using input curves. Download Clip(245KB) |
 | Use directional curve to defne a grid for a surface or polysurface. Download Clip (237KB) |
 | Use 2 direction curves to define a grid for a surface or polysurface. Download Clip (320KB) |
 | Define a 2D pattern of a star then apply it to a paneling grid. Download Clip (225KB) |
 | Define a 3D pattern of rotated pyramids then apply it to a paneling grid. Download Clip (508KB) |
 | Map 2D patterns to a paneling grid. Download Clip (244KB) |
 | Populate 3D objects using one paneling grid and one optional reference surface. Download Clip (295KB) |
 | Morph 3D objects using two paneling grid and two optional bounding surfaces. Download Clip (1413KB) |
 | Create grid from 2 curves. Download Clip (106KB) |
 | Use base surface or polysurface to trim panels. Download Clip (464KB) |
 | Divide a surface with equal distances. Download Clip (536KB) |
 | Generate a NURBs surface using paneling grid as control or edit points. Download Clip (1413KB) |
 | Generate quad planar panels using a paneling grid. Download Clip (612KB) |
 | Create and analyze flat panels. Download Clip (364KB) |
 | Use directional curves and defined distances to create panels and trim them against a base surface or polysurface. Download Clip (487KB) |
 | Paneling with multiple 2D patterns created using the 2D manager. Download Clip (306KB) |
 | Paneling custom patterns with variable scale and RecordHistory. Download Clip (64KB) |
 | Paneling custom patterns morphing between start and end shapes with RecordHistory. Download Clip (75KB) |
