How to morph a simple shape in Bongo 2.0?

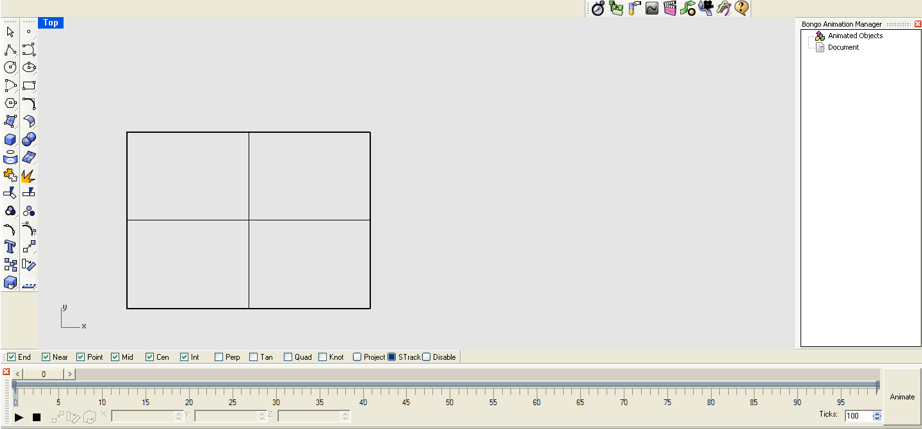

  • Start by drawing a simple Plane in Rhino.

  • Type in BongoTimeline on the commandline, to Start up Bongo and get the Timeline.
  • Select the Plane and press F10 to activate the Control Points in Rhino.

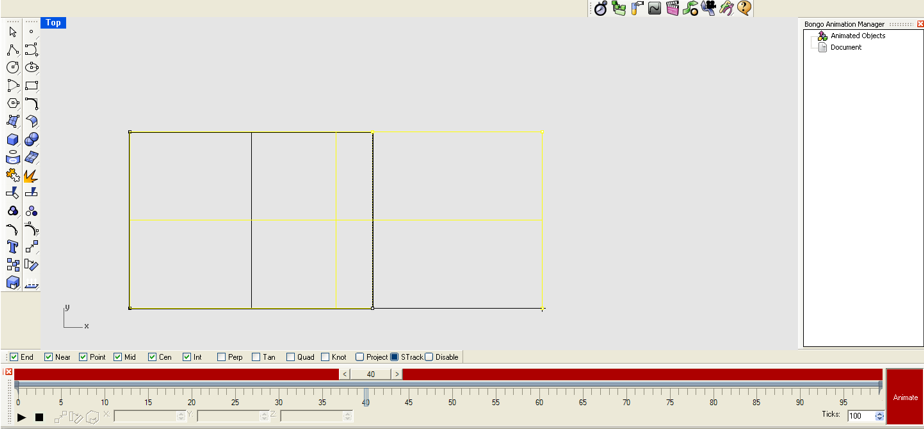

  • Press the Animate Button and move the Control Points.

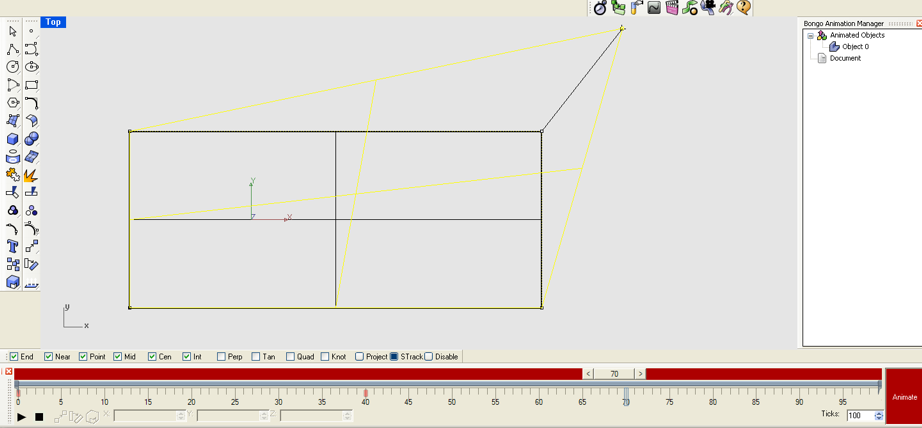

  • Moving the Control Points should create object keyframes on the Timeline.
  • You can move one or many Control Points at the same time.

  • Turn the Control Points off (Press F11).

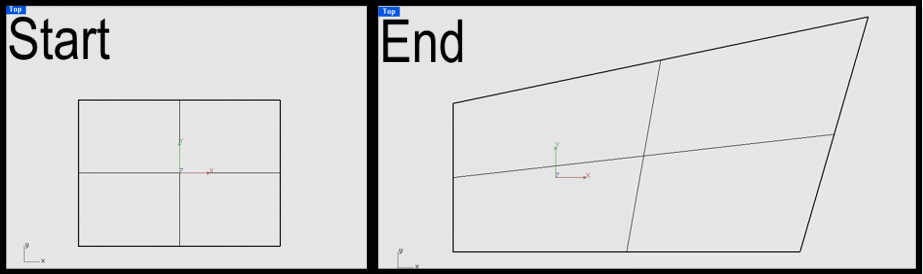

  • Press play to see how the plane moves. It should Start the animation from the original shape and end up in the shape you changed it to.
