Boolean Frequently Asked Questions

Summary: Unlocking the mysteries of Boolean operations: How and why they work, why they fail, how to fix problems and make them work more consistently, understanding how they work on open objects.

Boolean operations can be great time saving procedures for constructing objects in Rhino. But, for the beginner, they seem to often mysteriously fail, and it is difficult to understand why. Hopefully this FAQ explanation will clarify things a bit. If you don't want to wade through all the following info, you can also try John Brock's short Fixing Boolean Problems.

To understand why Booleans fail, first you must understand how they work. They are not a magic tool for putting objects together. They are simply semi-automatic operations that combine several manual commands into one process. The Boolean operations basically do four things:

  • Intersect two or more objects
  • Split them at the found intersections
  • Delete (discard) the parts not wanted
  • Join everything back together

Everything you can do with Boolean operations you can also do manually by using the above four commands. Using a Boolean operation only speeds things up by making it one procedure –- when it works…

So, the first thing to keep in mind is that a solid understanding of how the component operations of Booleans work is necessary. When all else fails, you can get the job done with these commands: Intersect, Split, Delete, and Join. Try undoing a successful Boolean operation and redoing it manually using those commands. Get comfortable with the fact that this procedure will always get you where you want to go even if your Boolean attempts fail. There are people who feel that using the manual Split/Trim/Delete/Join procedure and avoiding Boolean operations insofar as possible is a better way to model. The most important takeaway here is understand how this procedure - one of the basics of 3D modeling - works. If you do, you will not be stuck when some Boolean operation mysteriously fails later on - you will understand why and how to fix it.

Boolean operation failed...

OK, why do Booleans fail? First, it is the intersection operation that will determine the success or failure of a Boolean operation. If a correct intersection is found, the rest is easy. But if Rhino has problems finding the intersection, the Boolean operation is guaranteed to fail. So the key is to help Rhino find a good and complete intersection. You can do this by setting up your model and file correctly, and also by understanding some of Rhino’s quirks and limitations.

Intersecting two closed (solid) objects should produce at least one completely closed intersection curve (i.e. a loop). It’s possible there may be more than one loop if the object intersects in multiple spots -– no problem if they’re all closed. If even one is open, however, the Boolean operation will fail. This is because the intersection curve does not completely cut through the objects. Rhino doesn’t know how to finish the cut, so it stops and gives you an error message.

Note: Doing Boolean operations on open objects is also possible, but a bit more complicated, so we’ll assume at first that all objects are closed. Open objects will be covered later.

So, taking the above into account, if your Boolean operation fails, the first thing you should do is check the intersection of the objects. Select your objects and call Intersect. First, look at each intersection curve on the screen. Does it look correct? Are there any visible gaps or extra segments or other things that look strange? If so, find out why. If the intersection looks OK, but the Boolean still fails while the intersection curve is still selected, go into Properties > Details or use the command What. The resulting info box should tell you all you need to know about the curve. Does it say the curve is open? Then that's your problem area. More than one curve? You need to find out why there are either gaps or overlaps in your intersection.

Note also that using the manual Split or Trim / Delete / Join procedure instead of a Boolean operation will likely run into the same problem, as the Split or Trim operation will fail. Intersect can again help find the problem spot(s).

Intersection problems, solutions, and limitations

What causes gaps or problems in your intersection? There are many possibilities. Some are due to modeling errors or inaccuracies. Some are due to Rhino’s limitations. Let’s look at the common errors first:

If you think your intersection should be closed, but it’s not, select the curve, and call CrvStart, which places a point at the start of the curve. Normally this will correspond with one side of the gap. Zoom in closely and see if you can see the gap on the screen. Why is there a gap there? Maybe you think that your objects are closed, but they’re really not. The intersection may cross a gap between surfaces, and that will cause an open curve. If you have forced together your object using JoinEdge, that may also happen, even though the object says closed. The other thing to check is your modeling tolerances (see Understanding Tolerances). If they are too large, this may prevent the intersector function from finding a complete intersection, even though all else is well. Try tightening your tolerances and running the Boolean again. Once you get a full closed intersection, your operation should work…

If you can’t get Rhino to automatically produce a closed intersection curve, even after you have fixed your object the best you can, it may be time to go back to manual. Get the best intersection curve you can and try editing it until you have a closed object. You may need to add or change a segment, do some point editing, take out overlapping segments, or something like that. Once you have this curve, you can try trimming your objects individually. You need to explode your polysurfaces to trim with the intersection curve. Trim out the parts you don’t want and join all back up.

Known Rhino limitations

Coincident seam and other edges – All polysurface objects have joined edges and seams. Sometimes when the joints on two objects are at exactly the same place, Rhino has trouble with the intersection. Solution: Either try to move the joint or seam edge, or go back to the manual Split/Trim and Join procedure in this case, in general Rhino will allow you to do this just fine and you will be done. There is sometimes a possibility to move one object just a tiny, tiny bit - this is a last-ditch attempt because it will make your model less accurate and that could have poor consequences later.

Coplanar faces – If two faces of an object are on the same plane, Rhino may not be able to calculate the intersection. This is a fairly common occurrence. Later versions of Rhino are much better at resolving these situations, but they may still occasionally fail. Solution: As above, try doing this operation manually, it will always succeed.

Nearly tangent surfaces – Like the intersection of two equal diameter pipes at an angle. The intersection often fails at the point where the surfaces are tangent. Currently, there is no easy automatic fix for this problem, so you may end up having to use Intersect, then edit the resulting incomplete intersection curves to get something you can use to manually trim the surfaces before joining.

Invalid objects – If one of the objects you're trying to work with is invalid, Boolean operations will often fail. Check for invalid objects by using the command SelBadObjects. If one highlights, you need to fix it first before proceeding. It is also recommended that you turn on automatic object checking. If invalid objects are created in the course of your work (or imported), Rhino will tell you immediately. To do this, simply type CheckNewObjects. This is a toggle, running the command again turns it off.

Non-manifold polysurfaces – Although Rhino doesn't currently flag these objects as bad, they can cause failure. Rhino doesn't deliberately create these types of structures in general, but under certain conditions they can happen. The Properties/Details of an object will indicate if it is non-manifold, and you can use the edge analysis tool to highlight them. They will need to be manually repaired to fix the problem.

Manual construction and editing is sometimes needed

Animated illustrations showing manual surface construction and editing when Boolean operations fail:

How to Manually Edit Surfaces with Coplanar Faces and Nearly Tangent Surfaces

How to Manually Edit Surfaces with Coplanar Faces II

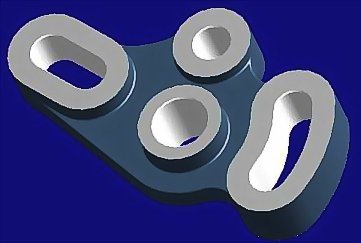

This is an example of a solid that can not be constructed with solid primitives and surface editing techniques are required.

  • The main problem is the condition of the side surfaces that are coincidental and do not share a volume with the main solid piece. When Booleans fail, rely on using surface editing techniques described in the steps in the linked document.
  • Download the model.



Boolean operations on open objects

As mentioned above, Boolean operations can also be performed on open objects. The principle is the same, but since the objects are not closed, we have a couple of extra things to do and understand. Rhino V4 and later provides a tool that makes the following procedure much easier if you have only two objects. See the command: Boolean2Objects

Surface direction

First, it is necessary to understand the concept of surface normals and direction. Every surface object has a “sided-ness”, that is, a front side and a backside. This is called the direction in Rhino and can be shown with the Dir command. Try using Dir on several different surfaces and see what happens. The direction arrows point to the outside of the surface, and they also show the local normal direction, i.e. they are at 90º to the surface locally.

For each surface, you can flip the direction of the normals (i.e. invert the sided-ness of the surface. To do this, while you're in the Dir command, you either type F and enter, or just click once on the surface. You will see the direction arrows flip sides. You can also do this outside the Dir command by using the command Flip (you will not see any arrows, though).

Note: Curves in Rhino also have a direction which can be shown by the Dir command. In this case, Flip exchanges the start and end points and reverses the curve direction.

When surfaces are joined, Rhino tries to standardize the surface normals of the object. That is, it tries to keep all adjacent surfaces having the same front/back orientation. So when you have an open set of joined surfaces (an open polysurface), it will still have one uniform front/back and not be a patchwork quilt of surfaces facing in different directions.

Experiment 1: Make a square. Extrude it into a 4-sided open box. Explode it into separate surfaces. Using Dir, flip two of the surfaces' directions to the inside. Now window select them all and use Join to make them into a 4-sided polysurface again and use Dir again to see what happened to the surface directions.

When an object is closed in Rhino, the program automatically flips all the surfaces to the outside. It assumes we don't care about the inside anymore, because the object is closed (solid). Closed polysurfaces cannot have their normals facing inside (try to see if you can with Dir). If you do manage to flip the normals of a closed polysurface to the inside, either it isn't really closed, or, you have discovered a (very rare) bug.

Experiment 2: Make a cube. Explode it into separate surfaces. Using Dir, flip a few of the surfaces' directions to the inside. Now window select them all and use Join to make them into a polysurface again, and see what happens to the surface directions.

How surface direction affects Boolean operations

OK, now you understand surface normals and direction. Why is this important in Boolean operations? When Rhino is instructed to perform a Boolean operation, it looks at the surface normals to determine which parts to keep and which parts to throw away. Essentially, Boolean Union, Difference, and Intersection are all the same operation. Just different parts of the objects are kept at the end. With Boolean Union, for example, the parts that overlap are thrown away and the rest joined together. With Intersect, it is exactly the opposite.

Booleans with solids (closed polysurfaces) are predictable, because all surface normals always point to the outside. But with open polysurfaces the results can seem unpredictable, as we don't immediately know which is the front or back of each object without using the command Dir.

Note: If you are doing Boolean operations on closed polysurfaces and they don't react the way you think they should (i.e. the wrong parts disappear), probably one or more of your objects aren't really closed and have the normals pointing inward. Use Dir to see.
Tip: One way to always know which way surfaces are facing is to set up your display to show backfaces in a different color from front faces. In V5 and onward, the backface color display is set for each different display mode you have. In the Rhino Options for any applicable display mode, choose Set single color for all backfaces, and choose a color.

Let's imagine the simplest open Boolean operation. You have one solid closed polysurface that is fully intersected by a single surface. You can easily create this by making any kind of solid object, then using the CutPlane command and drawing a cut line through your object in any direction.

Now, try BooleanDifference (BD). Select the solid as the first set and the cut plane as the second. One side or the other of the solid will be cut off and the hole filled by the plane. But which side???

You can't know unless you call Dir on the surface. Look at the direction of the surface normal. Then do your difference. Undo, flip the direction of the surface using Dir , then try the difference again. The direction of the surface normal of the plane determines which piece gets left.

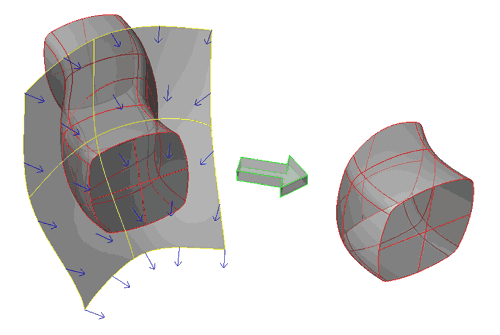

In general, if you want to BD between an open (poly) surface and a solid to work as if it was two solids, the surface normals of the open object should point towards the solid object, as if it were also a solid.

From Rhino V4 on, Boolean2Objects lets you cycle through all the possibilities of the different Boolean operations and see the result on-screen. You can then choose the result you want. Currently, this only works with just two objects.

However, one of the best solutions to this is to use BooleanSplit instead of BooleanDifference. BooleanSplit splits the base object(s) with the cutter(s), but it leaves all the parts. It's then easy to simply delete the part(s) you don't want.
