Custom Rhino Environments

A place for sharing your custom Rhino environments (workspace files). If it's just one toolbar please post it on the toolbar page.

Custom work environments for V4

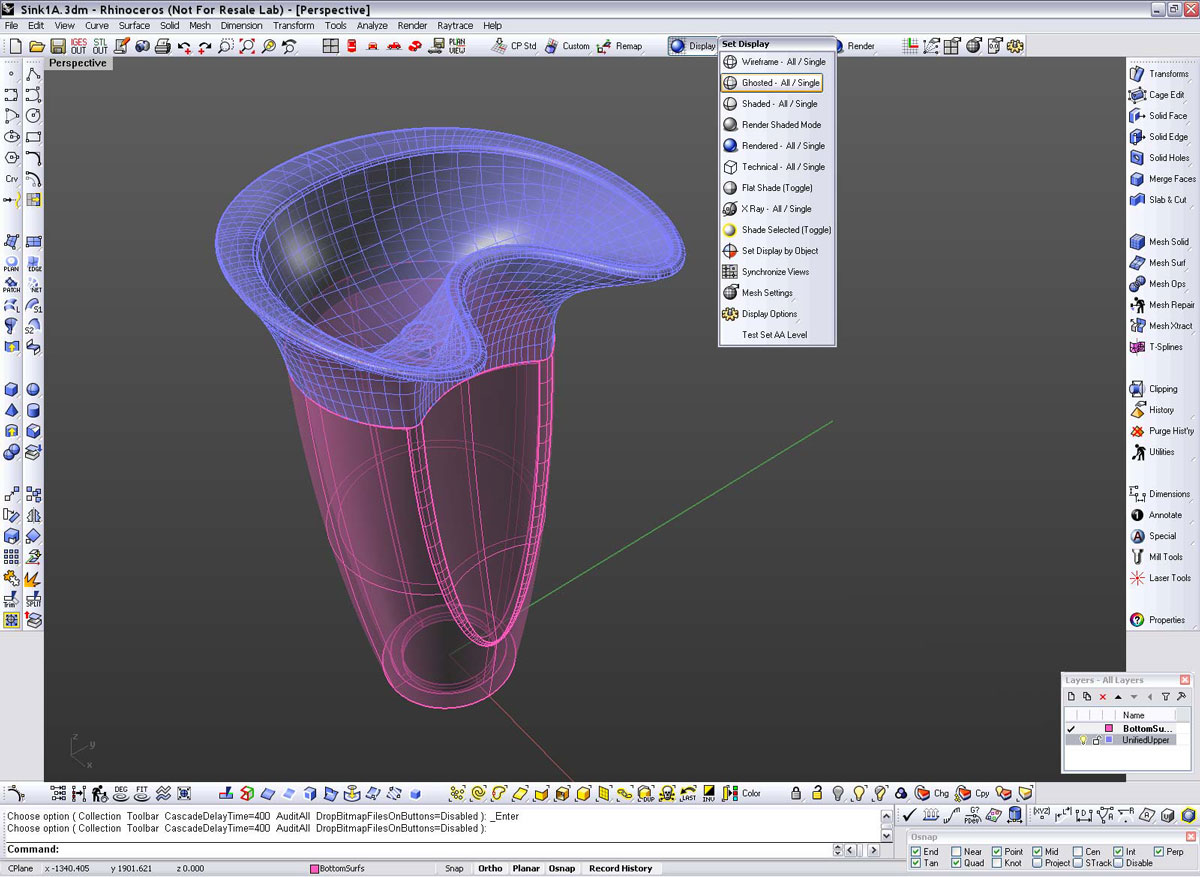

Mitch's customized V4 workspace WIP 0.7Mb download


As always, a work-in-progress. Changes often. Evolved from my original V1.1 workspace arrangement, now with V4 icons. I used V4's text button creation ability to create sets of menu-like toolbars for certain things. There are a few scripts under some of the buttons and lots of macros. A number of icons have been modified in an attempt to make them clearer (insofar as possible, V4 icons are just not “sharp”).

This is designed to be used at a minimum of 1280 horizontally and 900 vertically. For bigger displays, I have put in some blank buttons as spacers, you will need to remove some or all of them to work at the minimum horizontal or vertical resolution.

Use at your own risk… :)


Custom Displays of RhinoCentre In Rhino 4 you can create new displays for several purposes. Download the file and see the instructional video

Display Faces and Naked edges
faces_100.jpg Download faces.ini file

Instructional video

googlevideo_3287070985970664088

Other custom workspaces (V3, etc.)

G. C. Webster's customized V3 Workspace 167Kb download


it's possible to download my personal workspace file for Rhino 3.0, with custom buttons and organization. It contains regular commands, several macros, my own scripts and other useful codes from some VB masters such as Dan Bayn , David Rutten , Emilio Morello and Thomas Anagnostou.

It's composed basically by two big horizontal toolbars (and the osnap bar below) with flyouts in all buttons, leaving the most space possible to the graphics area. Almost all commands that we modellers often need (except some aliases) are available in these two toolbars, thanks to the flyouts. This WS was design to 1280 x 1024 resolution.

Requires at least Rhino 3.0 Service Release 4.
