Offline Installation of Rhino 6

The Rhino installer is responsible for making sure your Windows installation has everything it needs to run Rhino. This includes the .NET framework and Microsoft Visual C++ Runtime redistributable packages. Because many computers already have these packages, they are not embedded in the installer. They are downloaded as needed during installation.

In order to install offline, however, you need to make sure these packages are available.

Downloading Packages For Offline Installation

From a computer with internet access:

  1. Download the latest Rhino installer.
  2. Start the installer on the computer with Internet access

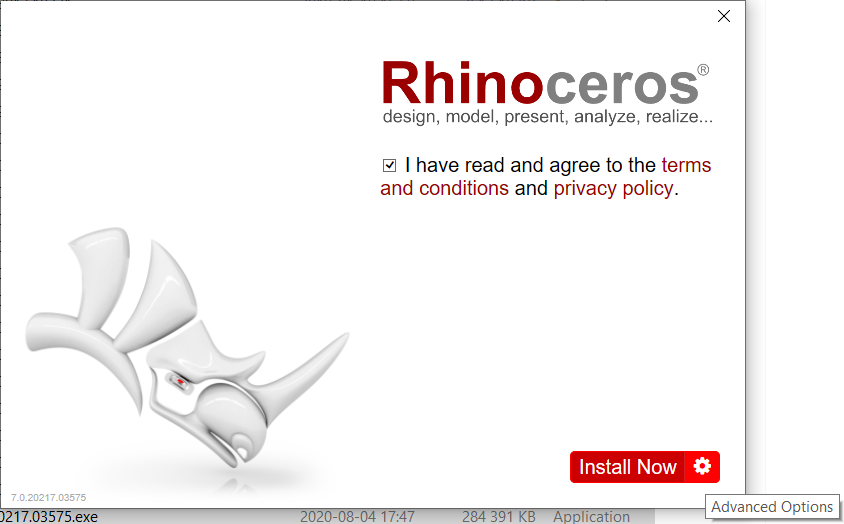

  3. Click the Gear icon next to the Install Now button.

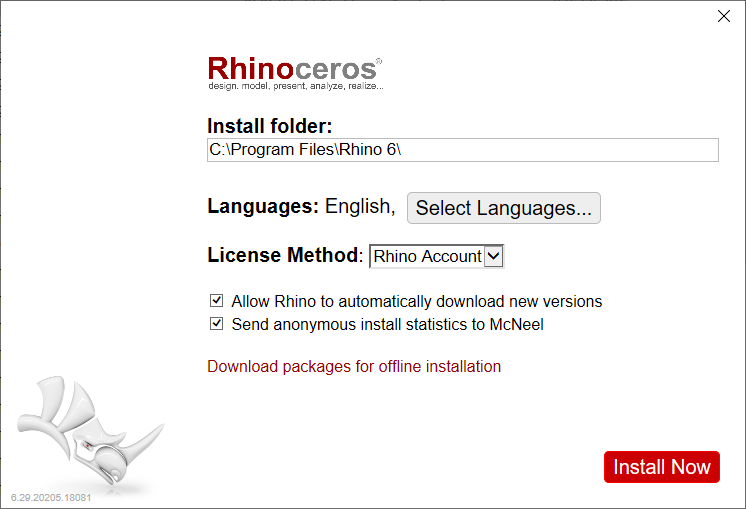

  4. Click the Download packages for offline installation link.

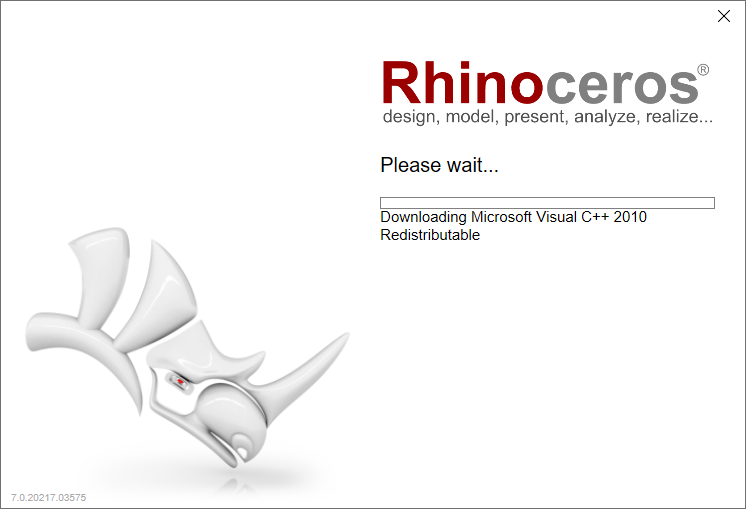

  5. Rhino now downloads the necessary packages to your computer and will show a dialog box while this is in progress.

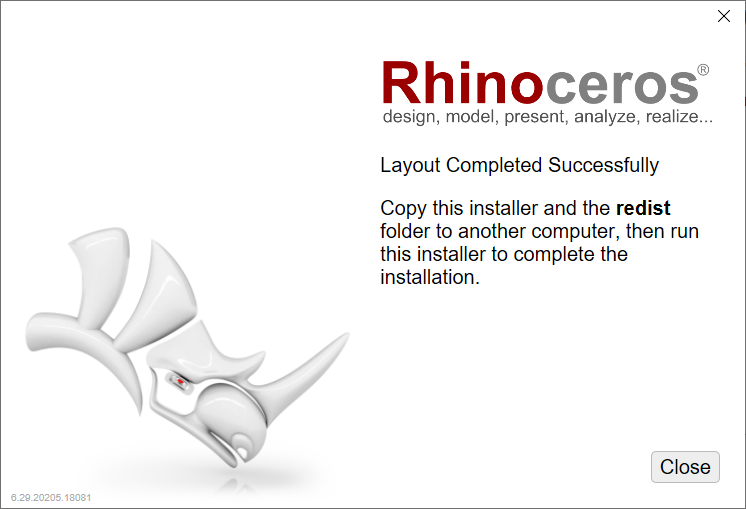

  6. When the download is completed, you will see a dialog box saying Layout Completed Successfully and containing further instructions.
  7. You will now find a Bootstrapper.exe file and redist folder next to the installer file that you just ran.

Installing

  1. Copy the Bootstrapper.exe file to an offline computer or network drive.
  2. Copy the redist folder to the same location.
  3. On the offline computer, run the Bootstrapper.exe file.

For network-wide deployment

Validating an offline installation

Rhino licenses must be validated before they can be used. For offline computers, you can perform license validation offline.

  1. When you launch Rhino, you will be notified that Rhino is unable to connect to the validation server.
  2. Click the button “Get Validation Code Manually”.
  3. The following dialog box will appear.
  4. Write down the License Key, Device Name, and Device ID information that is presented.
  5. Go to a system with Internet access.
  6. In a web browser, go to https://www.rhino3d.com/validate.
  7. Enter your email address, Rhino license key, Device Name, and Device ID information into the form.
  8. If upgrading, you will also enter a license key for a previous version of Rhino.
  9. Your validation code will be displayed. Print or save it to a text file. This code needs to be used within 24-hours of generating it.
  10. Return to the offline system.
  11. Enter your validation code in the Validation Wizard and click Next.

Rhino will now be successfully validated offline.

Note: For network-wide deployment and using an offline LAN Zoo, the necessary data is presented when you try to add a license to that Zoo. For a Zoo-specific write-up of the preceding instructions, see https://wiki.mcneel.com/zoo/rhinovalidateoffline#validating_offline

Help Files

The Rhino 6 help system is online. In order to use it offline:

  1. Run the installer, making sure to select For All Users during the install process.
